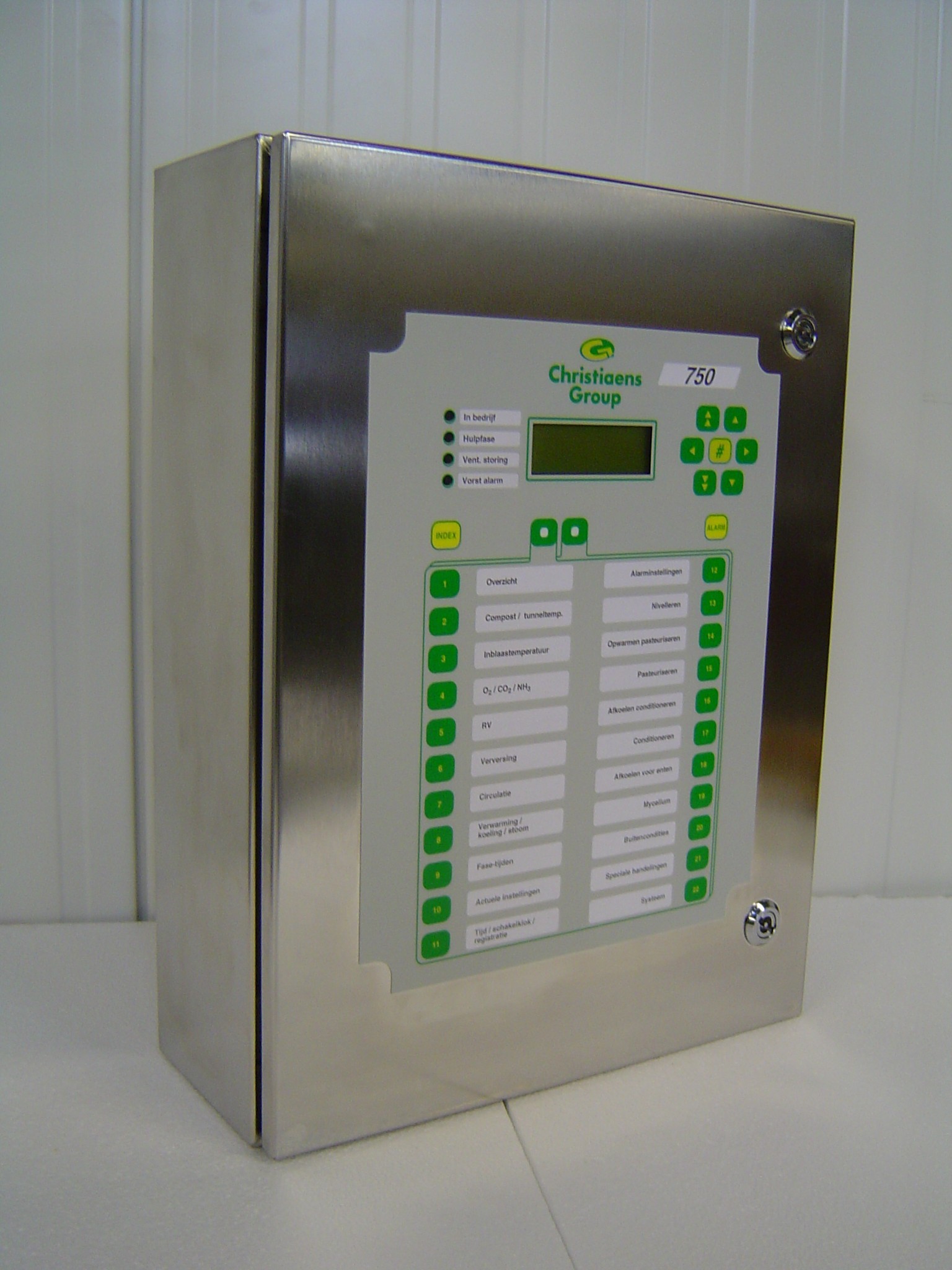

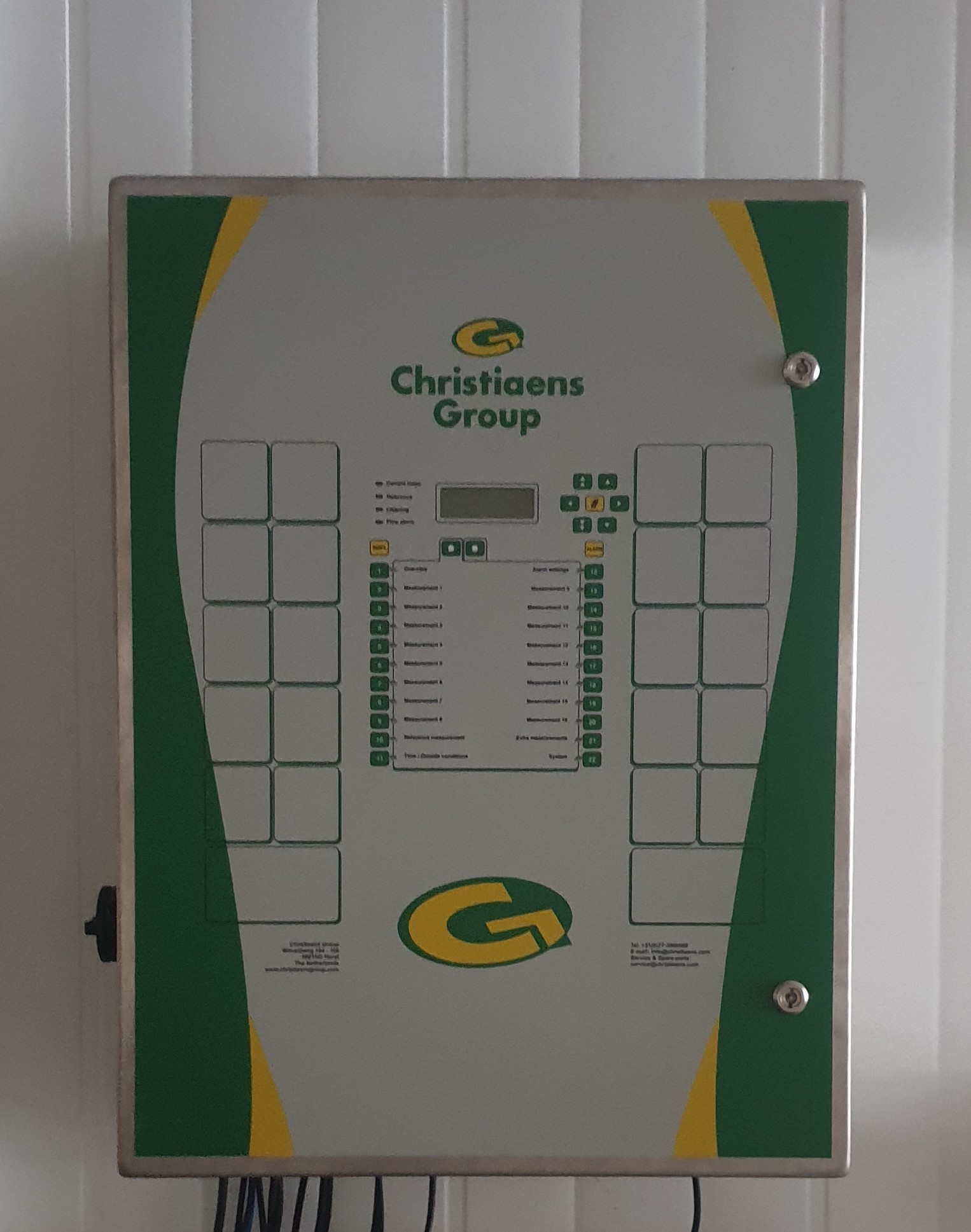

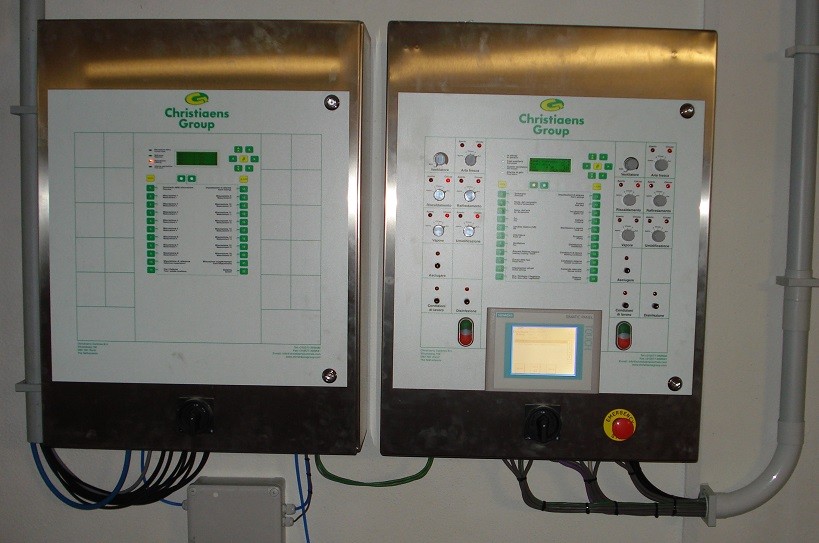

Christiaens climate control system CGF 765
The CGF 765 can be set to automatically control the ideal growing conditions for each of the 15 growing phases. All the grower has to do, is select the climate, required by simply pressing a key.
Help phases such as drying, des-infecting or working conditions can also be activated or stopped just as easily.
All the settings and measurements can be read in a glance on the extensive display.
Using PC connection, this data can be checked and changed if necessary. Even from a distance. Connection of the KCF 765 to a PC enables storage and processing of climate data, which can subsequently be presented in clearly read graphs and overviews.
An indispensable aid when comparing your yields.
The computer can be controlled via software. It is also possible to have a manual control with hardware, by means of a separate box.
Each individual growing room will have the following measurements for control:
CO2 measurement
Compost temperatures
Air temperatures wet & dry bulb
Relative humidity due to the wet and dry bulb readings
Air inlet temperatures
Outdoor measurements
Outside temperature
Outside relative humidity
For each individual growing room
4x Compost temperature sensors
3x Blow-in air temperature sensors
2x Air temperature sensors for RH measurement
1x Wet bulb air temp. sensor
1x Dry bulb air temp. sensor
1x RH box with a fan
1x CO2 measurement (via multiplexer)
Alarm system
An alarm is generated when one or more actual measurements are running out of parameter limits.
