Emptying winch with Emptying conveyor
The function of this winch is to unload compost and casing soil from the Growing Shelves.

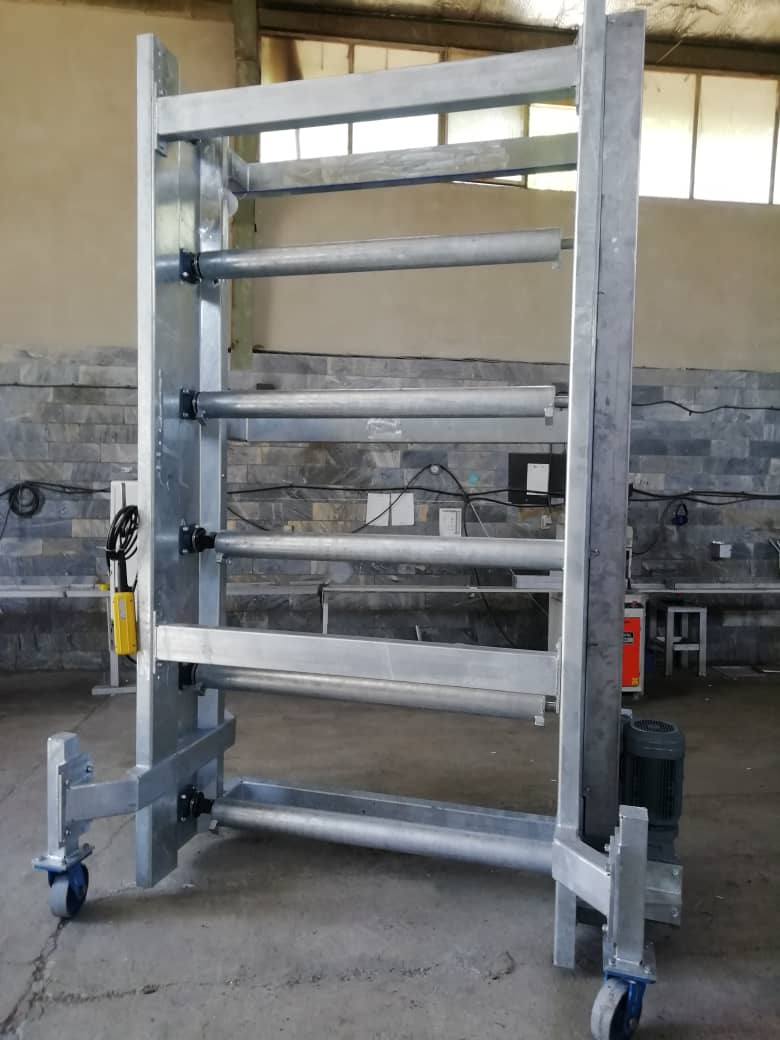

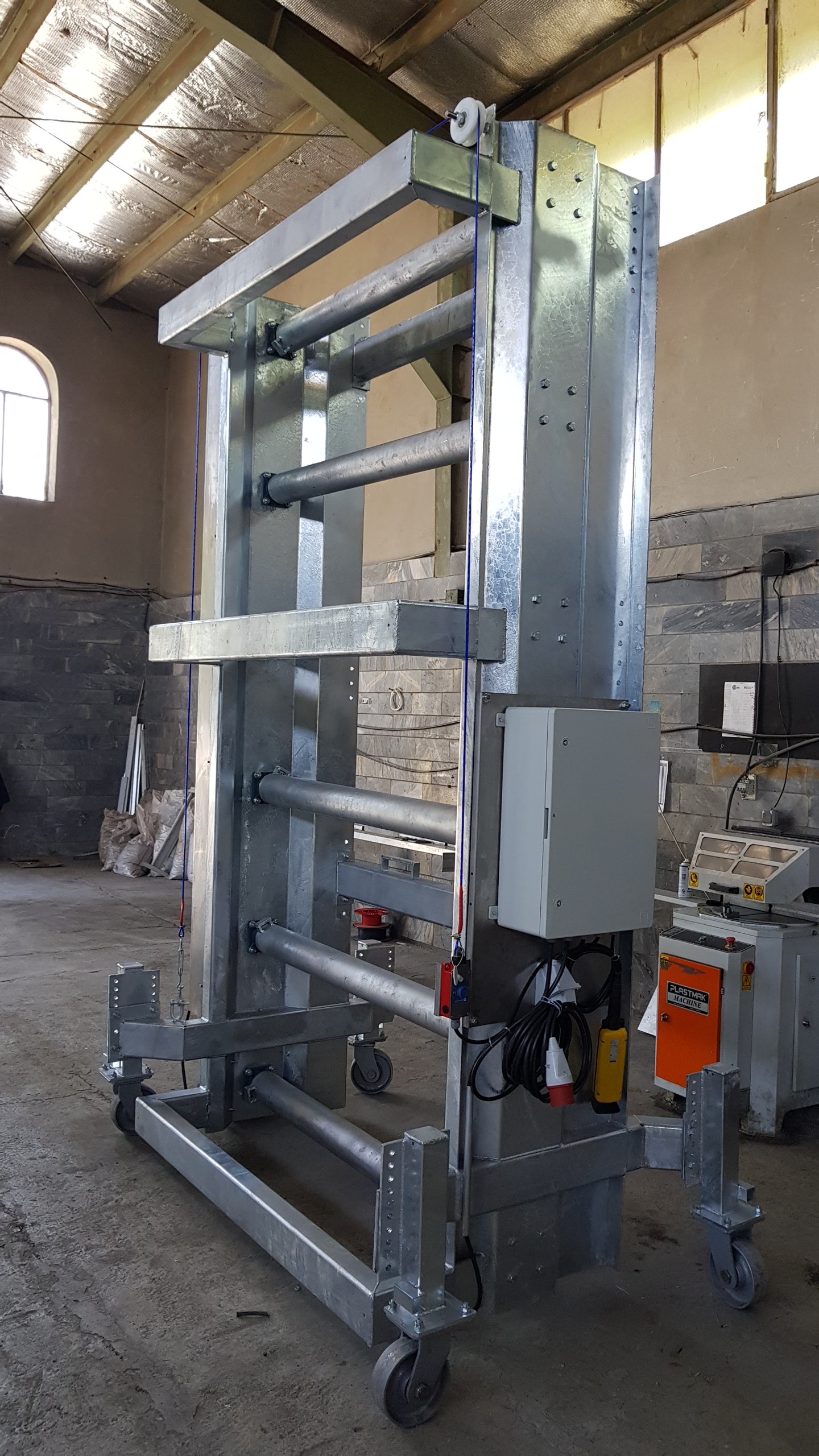

To unload the mushroom cultivation racks, an unloading winch and cultivation net are used.
The net is attached to the winch and collected by special clamps, so that the compost and soil are directed forward and poured onto the unloading conveyor.

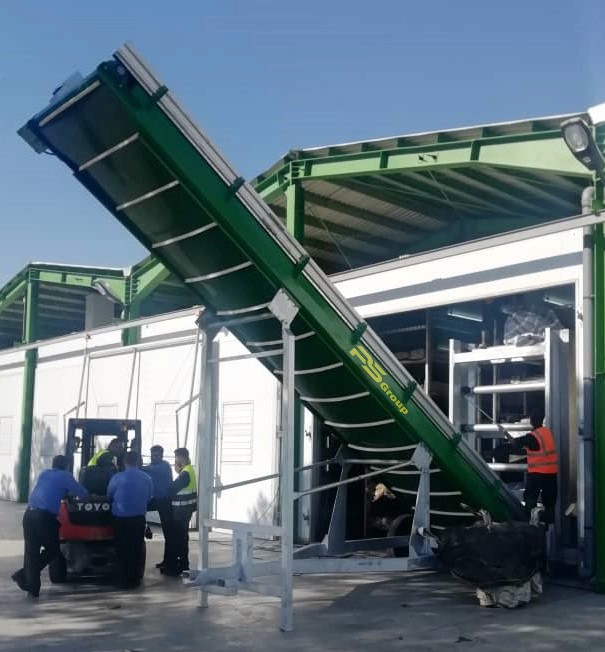

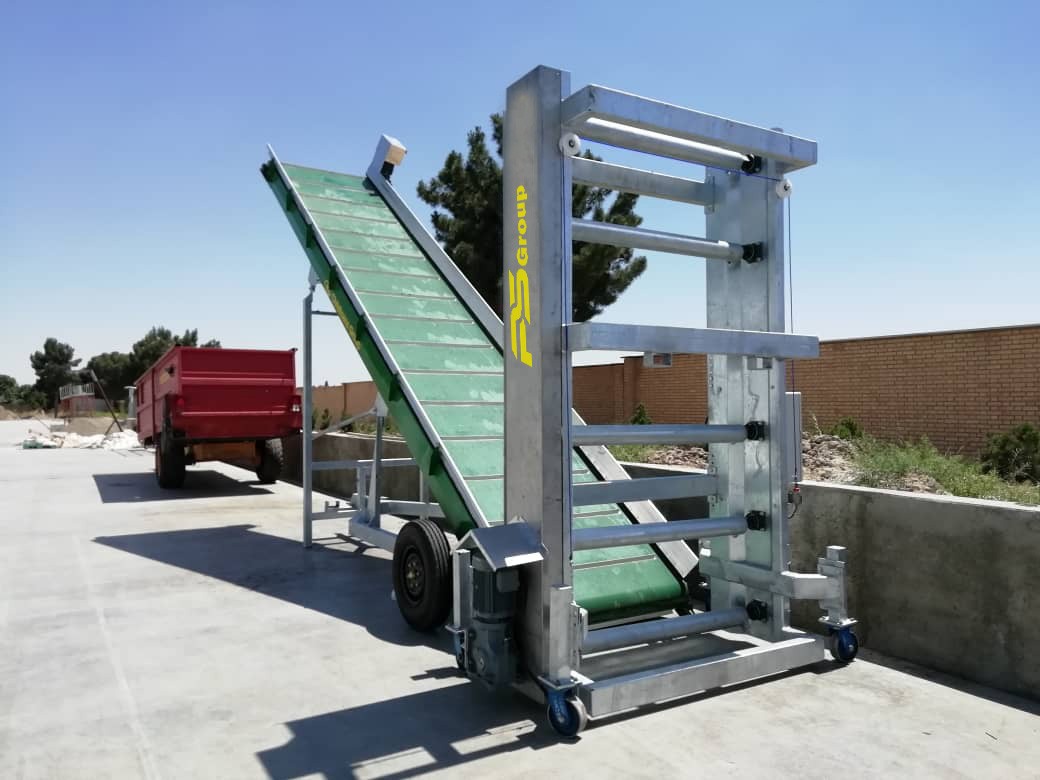

The unloading conveyor is placed in front of the racks. The compost and cover soil mixture is pulled by the unloading winch and poured into the unloading machine and then transferred to a truck.
Design and Technology
For shelves with a width of 120, 134, 140 and 160 cm
For shelves up to 9 floors
For shelves up to 70 meters long
Galvanized steel frame
Cable control with 6 meters of cable
Pulling motor with brake system
Equipped with a frequency drive system to adjust the motor speed
Covering guard on the roller with an emergency button
Pulling speed 6.5 meters per minute
Conveyor width: 120, 134, 140 and 160 cm
Conveyor length: 750 cm
Belt type: PVC belt
Belt shape: The belt has a T-shaped cross-section
3 kW Gearbox motor
